Monitoring applications for General Purpose

LCA – Valve Position Monitor

Type LCA position monitor is designed for direct mounting to ISO-NAMUR valve actuators in General Purpose applications, the Type LCA Monitor is a compact and robust, hard anodised aluminium enclosure with 2 independently settable mechanical switches.

It is the perfect solution for typical non-hazardous applications where cost and performance are critical considerations e.g. industries such as food and beverage, water and building automation.

Documentation

lca-gp-leaflet-2p-0518
LCA General Dimensions
LCA-General-Dimensions
LCA General Dimensions
lca-coding-a190363-general

SLR – Polycarbonate Valve Position Monitor

Type SLR engineered resin (polycarbonate) valve position monitor general purpose switch system that provides a competitive and technically superior solution for general purpose / non-hazardous applications.

The IP67 enclosure design comes with a unique quick access lockable cover allowing for reduced costs and space requirements whilst ensuring rugged reliability in the most testing environments.

Certified: Non-hazardous and ATEX / IECEx EX ia IIC T* Gb / Ex ia IIIC T*°C Db

Documentation

SLR w SO1 Bracket Dimensions
SLR Dimensions
SLR-DIM002
SLR-DIM001
SLR Intrinsically Safe Reference Document
SLR IOM ATEX IECEX
SLR – I. S. Master Model Description
SLR – I. S. Master Model Description

Position Monitors for Hazardous Environments

Zone 1 & 2 – Hazardous Locations

All these valve position products are suitable for zone 1 & 2 hazardous area locations typically found in offshore and onshore process industries. Options are available for ATEX, IECEx, CU-TR, PESO and Taiwanese classification.

Ex d

SRX CF8M (316) Stainless Steel Valve Position Monitor

A high integrity system with protection from corrosive or environmental attack typically found offshore and in onshore process plants. The IP66/67 enclosure has a bolt-on cover and top mounted high visibility open / close position indicator, ideally suited for hazardous area locations. Epoxy Coated Anodised Aluminium version is also available for Ex ia applications only.

Certified: ATEX / IECEx Ex ia IIC T4/5/6 OR Ex d IIB T6 Ex t IIIC T85°C

Documentation

SRX-DIM003-ET3
SRX-DIM005
SRX Flowline Indicator Lever General Dimensions
SRX General Dimensions
SRX Tall Cover Dimensions
SRX Monitor General Dimensions
SRX Tall Cover with Bracket Dimensions
SRX with 2-Pin ‘S’ Drive Dimensions
SRX-DIM003-ET1
SRX with bracket Dimensions
SRX-DIM003
SRX Exi CU ATEX RUS
SRX IOM ATEX IECEX Exi
SRX IOM ATEX IECEX Exd
SRX Master Model Description – I. S. – ATEX
SRX Master Model Description – Exd
SRX Master Model Description – Exi
SRX Master Model Description – Exd Custom Union
SRX Master Model Description – I. S. IECEx
SRX-image

SRA Epoxy Coated Anodised Aluminium Valve Position Monitor

The IP66/67 enclosure has a bolt-on cover and top mounted high visibility open / closed position indicator.

Certified: ATEX / IECEx Ex d IIB + H2 T4/6 & Ex d IIC T4/6 / Ex tb IIIC T130°C/85°C

Documentation

SRA Master Model Description – Exd Custom Union
SRA Master Model Description – Exd
SRA Captive Screw Feature
SRA IOM ATEX IECEX
SRA CU ATEX RUS
SRA S Type Shaft Dimensions
SRA IIC Cover Dimensions
SRA Valve Position Monitor Dimensions
SRA-DIM001-ET3
SRA with Bracket Dimensions
SRA Valve Position Monitor IIC Cover Dimensions
SRA-DIM001-revA
SRA-DIM001-ET1
SRA-DIM010
SRA-image

IQ CF3M (316L) Stainless Steel Valve Position Monitor

This monitor offers an IP66/67 environment protection for flameproof hazardous area monitoring applications. Incorporating features that allow plant personnel to install, monitor and maintain the valve assembly with the minimum of fuss, the units dual function position monitoring system is available with mounting arrangements that allow compact attachment to both quarter-turn and linear process valves.

Certified: ATEX / IECEx Ex d IIC T*Gb/Ex tb IIIC T*°C Db

Documentation

IQ General Dimensions
IQ-DIM001
IQ NAMUR Block Dimensions
IQ-DIM007
IQ-DIM002-revA
IQ CU ATEX RUS
IQ IOM ATEX IECEX
IQ Master Model Description – Exd
IQ – Master Model Description
IQ-image

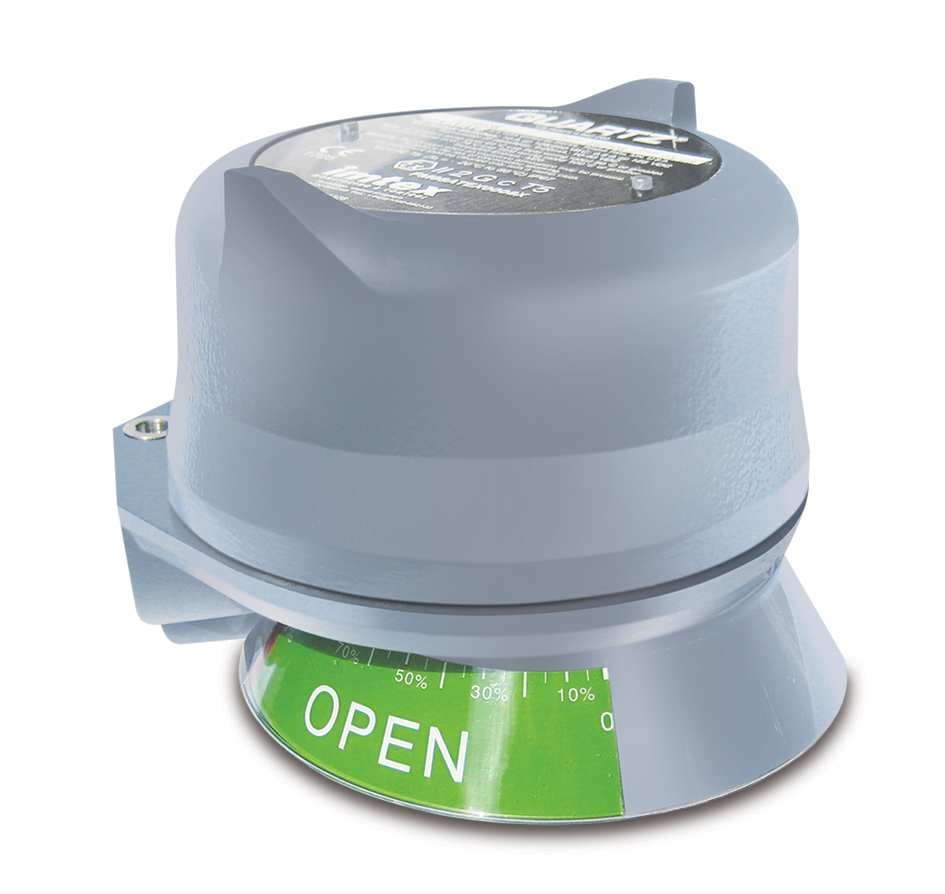

SQ Epoxy coated Anodised Aluminium Valve Position Monitor

Incorporating features that allow plant personnel to install, monitor and maintain the valve assembly with the minimum of fuss, the units dual function position monitoring system is available with mounting arrangements that allow compact attachment to both quarter-turn and linear process valves. The IP67 enclosure has a screw-on cover and is supplied with a high visibility open / close position indicator all designed to minimise the total size of the automated valve package.

Certified: ATEX II 2  G/ Ex d IIC T5 Zone 1 & 2

Documentation

SQ General Dimensions
SQ-image

Ex ia

SLR – Polycarbonate Valve Position Monitor

Type SLR engineered resin (polycarbonate) valve position monitor general purpose switch system that provides a competitive and technically superior solution for general purpose / non-hazardous applications.

The IP67 enclosure design comes with a unique quick access lockable cover allowing for reduced costs and space requirements whilst ensuring rugged reliability in the most testing environments.

Certified: Non-hazardous and ATEX / IECEx EX ia IIC T* Gb / Ex ia IIIC T*°C Db

Documentation

SLR w SO1 Bracket Dimensions
SLR Dimensions
SLR-DIM002
SLR-DIM001
SLR Intrinsically Safe Reference Document
SLR IOM ATEX IECEX
SLR – I. S. Master Model Description
SLR – I. S. Master Model Description

SRX CF8M (316) Stainless Steel or Aluminium Valve Position Monitor

A high integrity system with protection from corrosive or environmental attack typically found offshore and in onshore process plants. The IP66/67 enclosure has a bolt-on cover and top mounted high visibility open / close position indicator, ideally suited for hazardous area locations. Epoxy Coated Anodised Aluminium version is also available for Ex ia applications only.

Certified: ATEX / IECEx Ex ia IIC T4/5/6 OR Ex d IIB T6 Ex t IIIC T85°C

Documentation

SRX-DIM003-ET3
SRX-DIM005
SRX Flowline Indicator Lever General Dimensions
SRX General Dimensions
SRX Tall Cover Dimensions
SRX Monitor General Dimensions
SRX Tall Cover with Bracket Dimensions
SRX with 2-Pin ‘S’ Drive Dimensions
SRX-DIM003-ET1
SRX with bracket Dimensions
SRX-DIM003
SRX Exi CU ATEX RUS
SRX IOM ATEX IECEX Exi
SRX IOM ATEX IECEX Exd
SRX Master Model Description – I. S. – ATEX
SRX Master Model Description – Exd
SRX Master Model Description – Exi
SRX Master Model Description – Exd Custom Union
SRX Master Model Description – I. S. IECEx
SRX-image

AQ Epoxy Coated Anodised Aluminium or CF3M (316L) Stainless Steel Valve Position Monitor

This monitor offers an IP66/67 environment protection for general purpose and intrinsically safe area monitoring  applications. Incorporating features that allow plant personnel to install, monitor and maintain the valve assembly with the minimum of fuss, the units dual function position monitoring system is available with mounting arrangements that allow compact attachment to both quarter-turn and linear process valves.

Certified: ATEX II 2 G /Ex ia IIC T4/6 Zone 1 & 2

Documentation

AQ Mount to Size 1 NAMUR Dimensions
AQ Tall Cover Mount to Size 1 NAMUR Dimensions
AQ NAMUR Dimensions
AQ-DIM005
AQ-DIM006
AQ General Dimensions
AQ-DIM001
AQ Tall Cover Dimensions
AQ CU ATEX RUS
AQ IOM Non-Harzardous
AQ IOM ATEX
AQ Master Model Description – I. S. ATEX
AQ Master Model Description – I.S.

Ex emb

DQ CF3M (316L) Stainless Steel Valve Position Monitor

The IP66/67 enclosure has a screw-on cover and is supplied with a high visibility open / close position indicator all designed to minimise the total size of the automated valve package.

Certified: ATEX / IECEx Ex emb IIC T4/6 Zone 1 & 2

Documentation

DQ General Dimensions
DQ Tall Cover General Dimensions
DQ IOM ATEX IECEX
DQ Master Model Description – Exem

Sub Sea

XS & MXS Valve Position Monitor

These systems offer IP.68 protection for sub sea valve / actuator monitoring applications.

The Type XS & MXS incorporate pressure resistant enclosures and redundant sealing systems to ensure ingress integrity is maintained in the most challenging environment.

Other features include diver friendly access enable personnel to install, monitor and maintain the valve assembly with the minimum of fuss.

The units’ dual function position monitoring system are available with mounting arrangements that allow compact attachment to both quarter-turn and linear process valves.

Documentation

xs-subsea-leaflet-2p-0514
